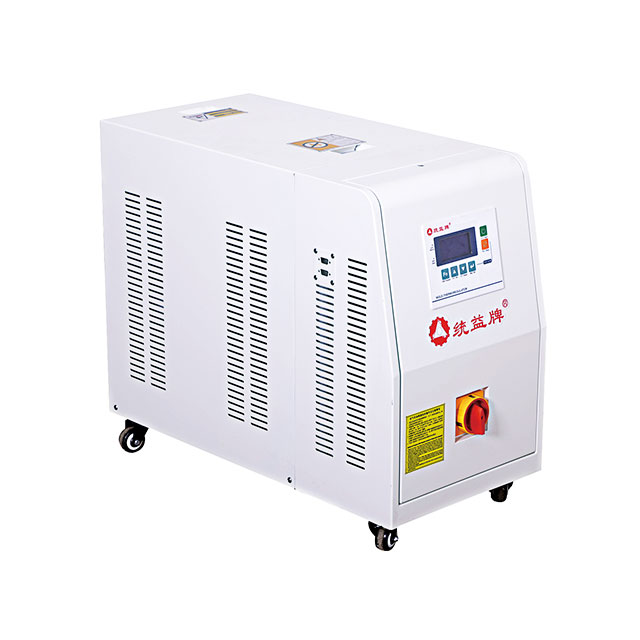

TTO series oil type mold temperature controllers have standard type, high temperature type, dual temperature type, mainly control the mold temperature to be kept in a constant temperature state. It uses oil as heating media to realize heat exchange by indirect cooling. The return oil of the mold is cooled indirectly by the cooler, and then send to the mold by the pump pressure through the heater heating to meet the requirements of heating and constant temperature. Oil type has its superiorities with wide temperature controlling range and excellent heat stability.
Features
1. To adopt microcomputer dual P.I.D. automatic calculation controller, can be two-way control (heating and cooling), rapid heating and cooling speed lead temperature to be kept precisely and stably with accuracy up to +0.1ºC.
2. Weekly timing automatic switch on and off, can save electricity and effective arrangement of work to improve efficiency. In addition, it also can support Chinese/English switch.
3. Unique heating design is suitable to different temperature control application with excellent & distinct power saving.
4. Electric control box and machine body are isolated to acquire good effects on heat insulation, can extend the service life of electric component.
5. Safety protection and fault indication system includes: main power non-fuse braker; pump overload and overheating protection,low liquid level protection, easy operation and maintenance.
6. Imported hi-class parts with long service life to save maintenance cost.
7. 304 stainless steel integrated pipelines with less pipe resistance and even heating for long service life.
8. It uses oil as heating media to realize heat exchange, standard heating temperature can reach at 200ºC while high temperature type can reach 300ºC.
9. Standard equipped with RS485 communication interface that can realize automatic centralized monitoring.

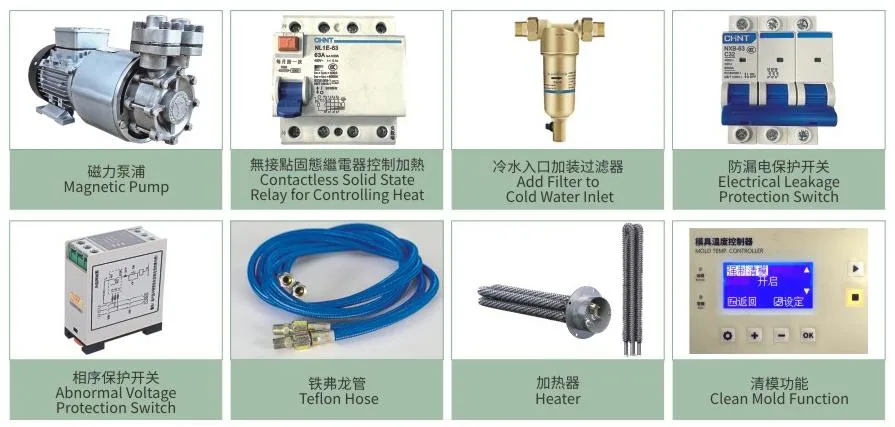

Options
Application

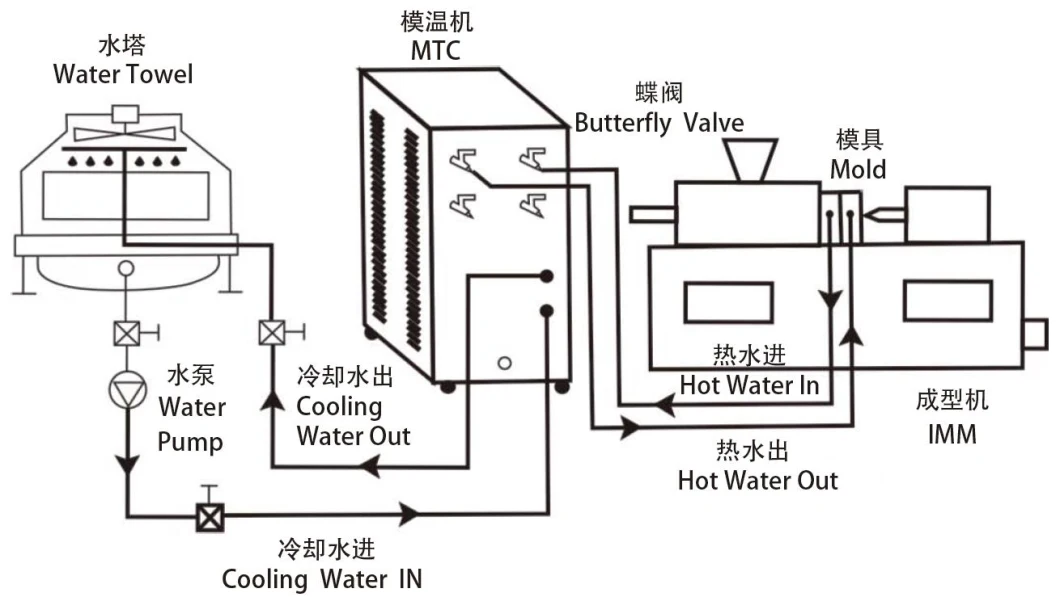

Mainly used in mold heating and constant temperature. In addition, it can also be applied to other fields of heating and constant temperature, such as die casting (high temperature type) & printing industry (big power of mold temperature controller) etc.
