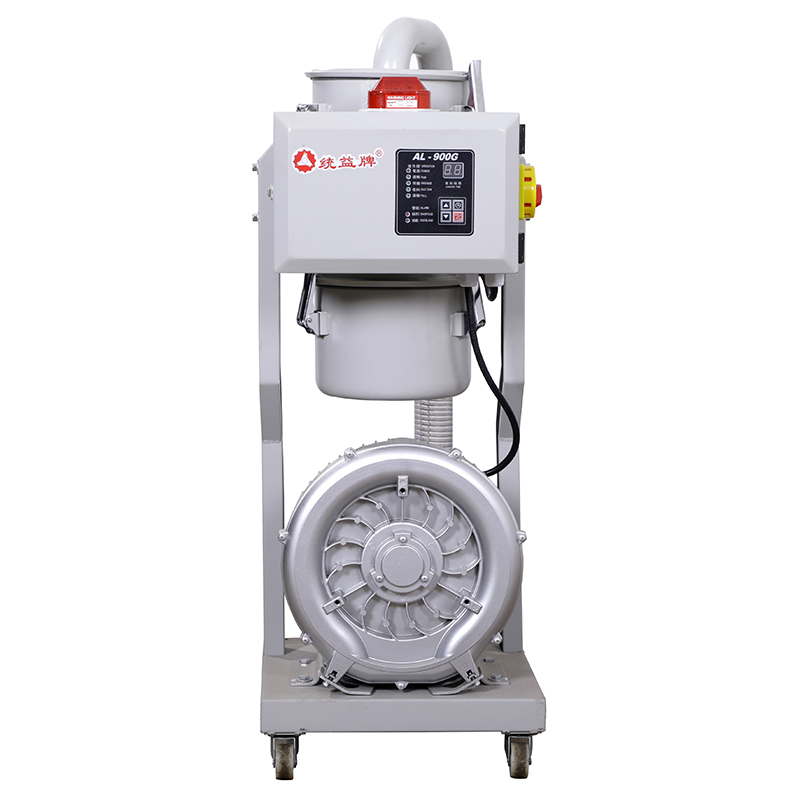

The raw material conveying capacity for TAL series detachable autoloaders (open type) is up to 2000kgs /hrs, the maximum loading distance up to 10M, widely used in the raw material conveying industry of IMM, extruder and other equipment, with easy installation, simple operation, long distance conveying ability, stable production, realizing automatic production of auxiliary equipment.
High-power autoloader ranges from 1.5HP to 10HP, specially developed for the situation of large amount of material in accordance with the different use of the client by two, four or six vacuum hopper receiver, suitable for a number of hopper dryers to convey a variety of plastic raw materials. In addition, it can also achieve one machine for two, four or six kinds of raw materials to different IMM or hopper dryers for substantial cost savings.
Features
1. Microprocessor memory use EPROM to back up data in case power failure, set data permanently saved.
2. Detachable autoloader design has the traits of quick cleaning, easy maintenance and easy operation. Autoloader is easy to move, equipped with vacuum motor, dust filter and exhaust silencer tube.
3. Unique safety valve design structure, all models equip with broken vacuum valve can effectively protect the blower from any damage when it overloads.
4. European style design with exquisite appearance and are made of stainless steel to ensure no material contamination.
5. It adopts down-suction design and use a cyclone dust separator and a dust collective bin together for reducing the load of filter effectively. Separated dust collective bin is easy for cleaning dust and convenient maintenance.
6. The mainframe equips with fault and motor overload indicator light which can alarm in time.
7. Open floor stand design, easy installation and maintenance, stable performance, long service life.
8. European plugs ensure reliable & safety operation.
9. According to the needs of the customers'production system, the reasonable selection of single-stage or double-stage blower, matching with professional system management scheme.
10. Roots blower can be selected (option), suitable for long-distance conveying, the mainframe can work with 2, 4, or 6 hopper receivers according to different needs , to provide multiple choices.
Application

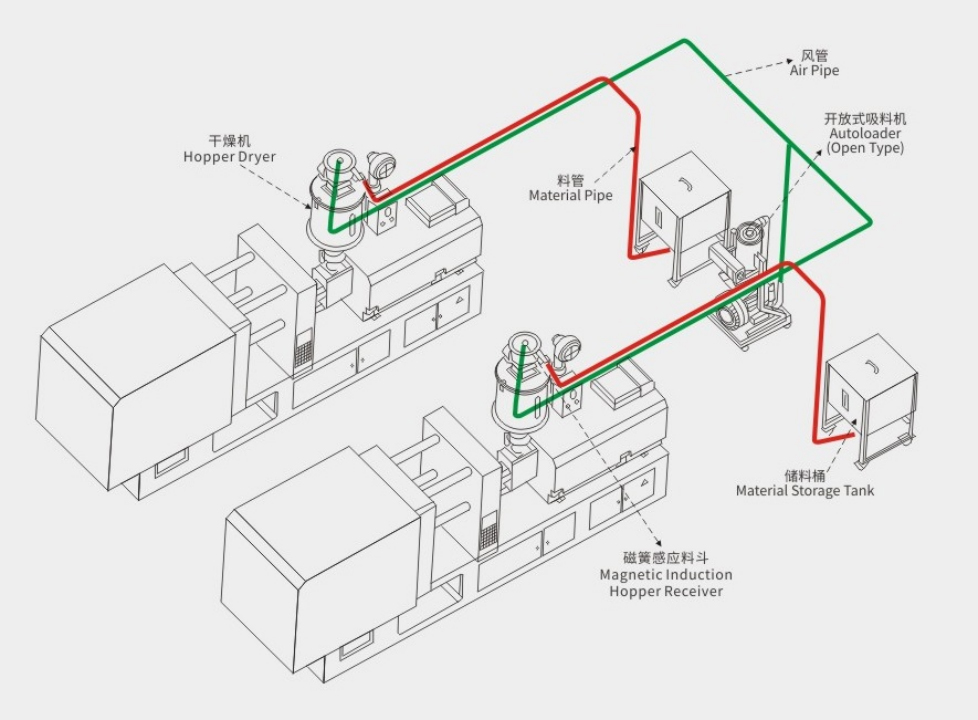

Autoloader can be dived into self-contained type and separated type, widely used in IMM, extruder and other equipment of raw material conveying, the main controllers and hopper receivers are designed separately which is suitable for long distance delivery, strong suction.
High- power autoloader is specially developed for the situation of large amount of material, suitable for conveying to a number of hopper dryers and a variety of plastic raw materials to different IMM or hopper dryers for substantial cost savings and realize automation.
