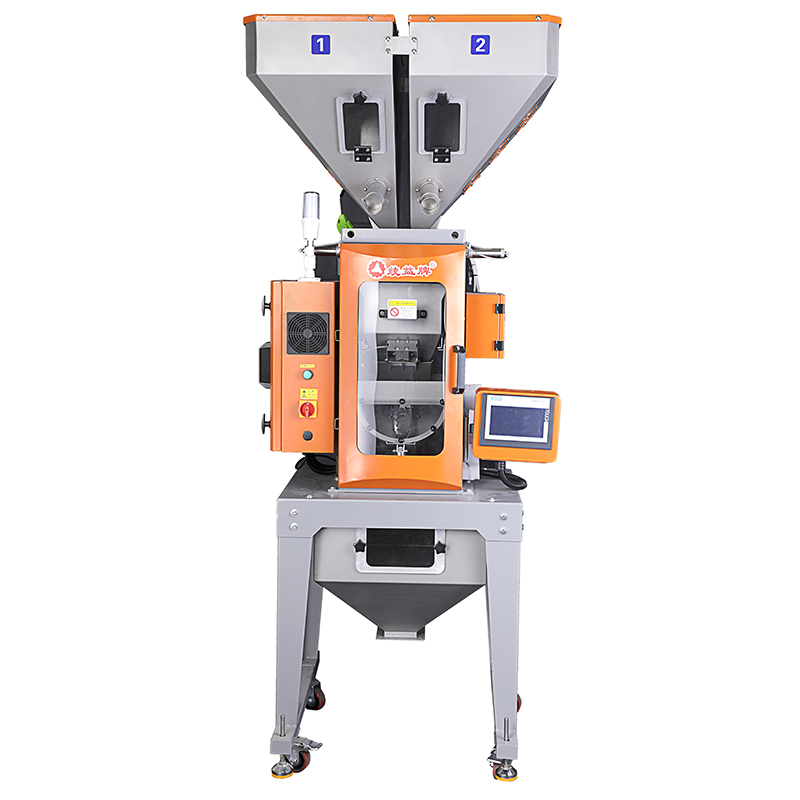

TGB series gravimetric blender is suitable for thermoplastic materials with good fluidity for weighing, metering and uniform mixing, mixing equipment isa batch type, depending on the injection molding products use raw materials formula,this series hasa variety of models to choose,processing from 2 to 10 kinds of raw materials weighing, metering and mixing, including virgin materials, regrind materials, masterbatch and various additives.
Features
1. PLC controller adopts advanced control algorithm,automatic adjustment compensation and vibration prevention function, to ensure the best accuracy of ingredients.
2. Modular dismantle design can savespace and easy to clean the material.
3.The parts contacting with raw materials are made of stainless steel to avoid contamination of raw materials and easy to clean.
4.The system has the function of statistics and quantitative mixing,which can count the amount of each material in each shift,optimize the consumption of raw materials and reduce waste.
5.Can set the proportion or percentage of raw materials,easy to operate,accurate and stable continuous operation measurement,while mixing the raw materials and weighing the next batch of raw materials.
6.Accurate and continuous weight control,micro-dosing accuracy up to ±0.2~0.5%.The feeding sequence of each material can be set in advance.
7. With recipe storage function, up to 100 groups of recipe storage.
8. Hierarchical security password control and alarm history function.
9. It can be installed directly on the machineor beside-the-press with optional floor stand.
10. Optional RS485 communication interface that can realize automatic centralized monitoring.
Options
1. Material level sensor,which alarm of material shortage
2. Install material level sensor in a metering hopper.
3. Pneumatic discharge valve(for machine direct mounted type)
4. Floor stand,pneumatic discharge valve,material storage tank and suction box (for ground mounted type).
5. An Ethernet interface/module that enables remote monitoring.
6. Optional mixing base ensure that the material is evenly mixed.
7. Screw and sleeving that can be made according to customer requirements.
8. Optical parts can be polished.
9. 4 Standards masterbatch, can be customized according to customer requirements up to 6 masterbatch to add functions.
Application
Gravimetric blender is mainly used for IMM and extrusion, casting film machine, pressure molding and blow molding machine and other plastic processing industries need a variety of raw materials in proportion for accurate mixing use,can be used as a single molding machine raw material ingredients station,can also be used as multiple molding machine raw material mixing center.

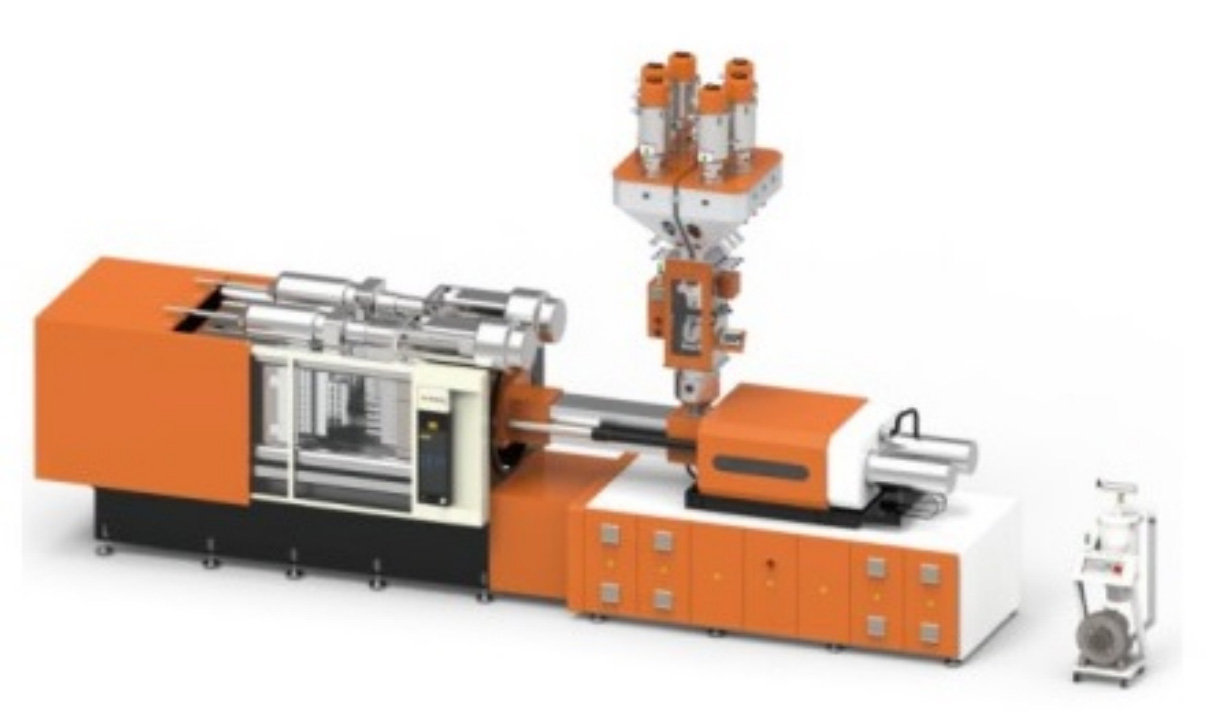

Gravimetric blender can be installed on the bracket above the machine,also can be installed on the bracket next to the machine,with an autoloader for conveying raw materials to IMM, or installed on the floor above IMM.
