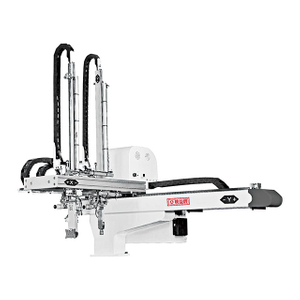

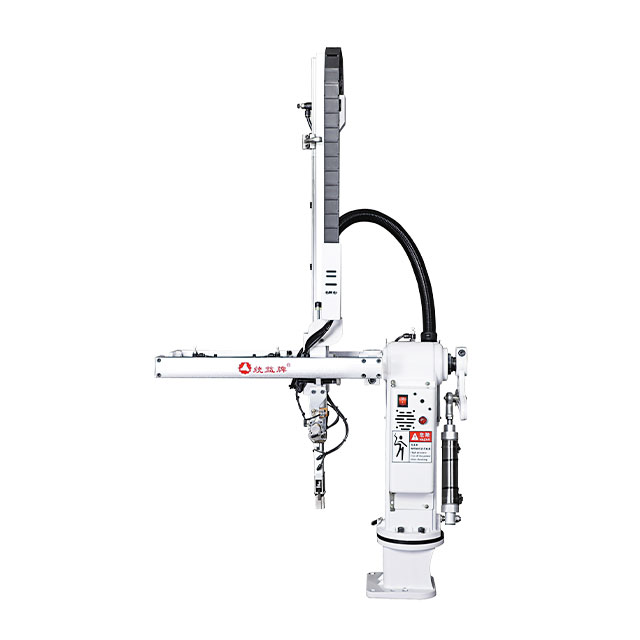

Swing-Arm Robots are extensively applied to horizontal / vertical plastic IMM ranging from 30T~150T which can rapidly take out the runners, runners and finished products from the mold. Vertical arms have two types -single stage and telescopic; its vertical stroke is 650 / 750 / 850mm which are particularly for 2 platen molds. The vertical, crosswise, rotating in & out are driven by pneumatic with the traits of high speed, high efficiency, economic robots. It can enhance production capacity 30%; decrease production detection; ensure operators safety, reduce labors; control production quantities; reduce waste.
Features
1. Palm controller, friendly operation interface, easy operation.
2. 2. Open teaching mode, customers can flexibly use teaching special action program to meet the technological needs of various special products.
3. 3. Wrist rotation mechanism:the arm front-end for installing gripper can rotate 90°(H-650 front-end rotation 90° ); absorbs & gripper jig can be installed with sensor device for detecting to get products or not.
4. 4. Employed high strength & tension aluminum alloy to work with precise linear guide rail, features with light weight, low wear resistance, long service life.
5. 5. X axis can rotate 90° which is for changing molds conveniently, equipped with hydraulic shock absorber for making forward & backward stroke more stable and smooth.
6. 6. Y axis is equipped with device to avoid pneumatic cylinder falling.
7. 7. Z axis can be adjusted angle from 45°-90° for placing finished parts by different direction according to requirement. (place parts at the operate side or non- operate side of IMM.)
8. 8. Safety protection device: external signal interlock with injection molding machine to have double safety protection for molds to ensure no locking if parts are not taken out via signal confirmation of finished products removal.
9. 9. Robots can take runner out rapidly and accurately from molds to put beside-in-press granulator for instant recycling.

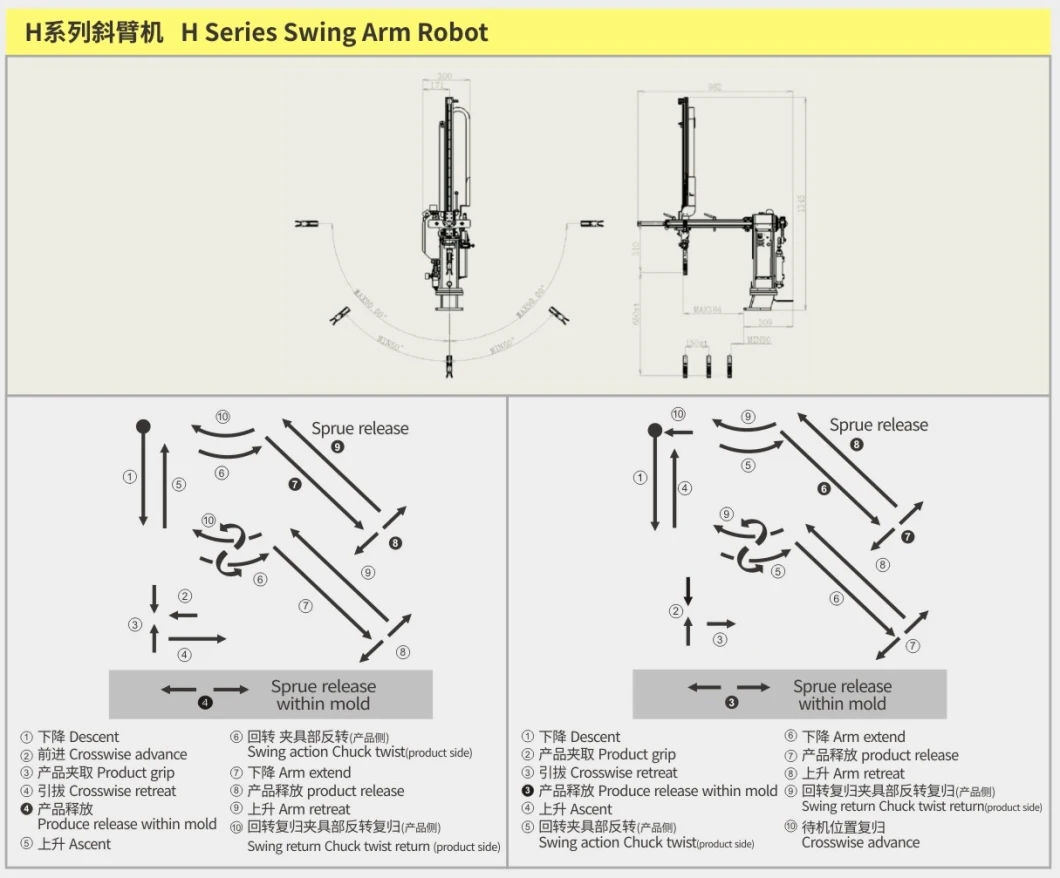

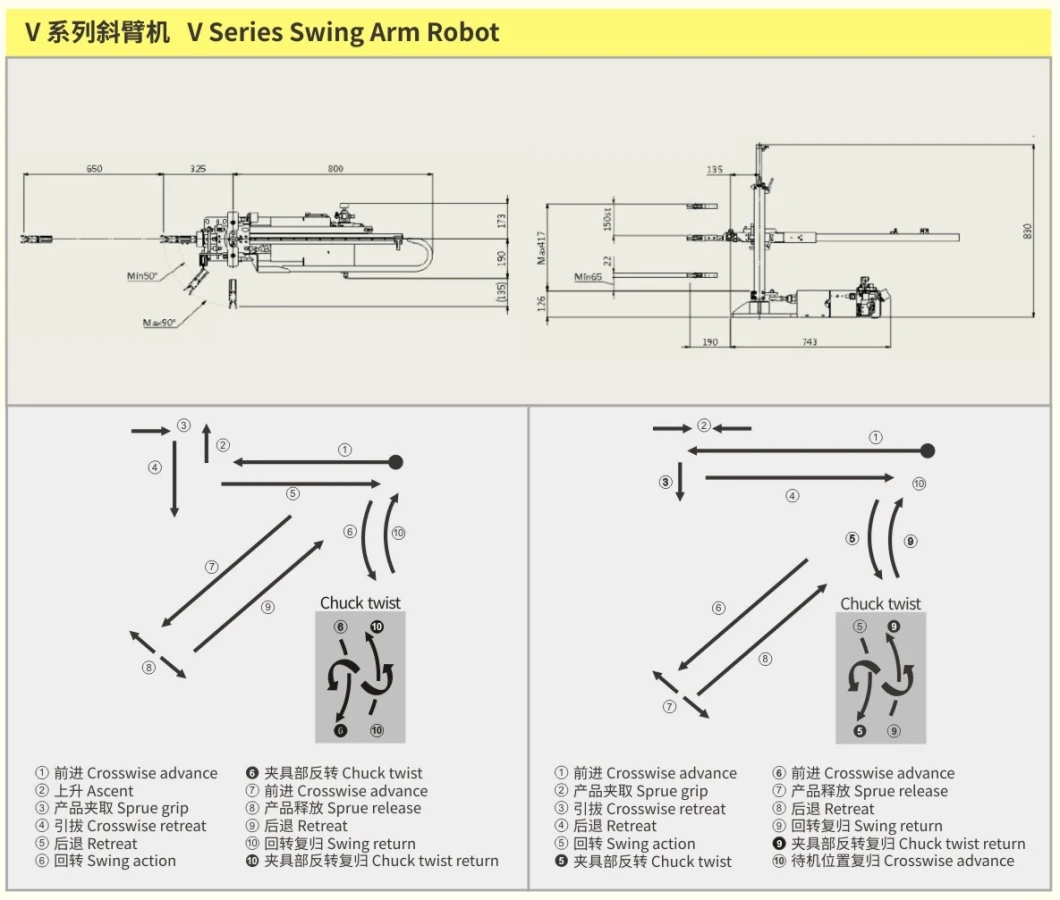

Motion Pattern
